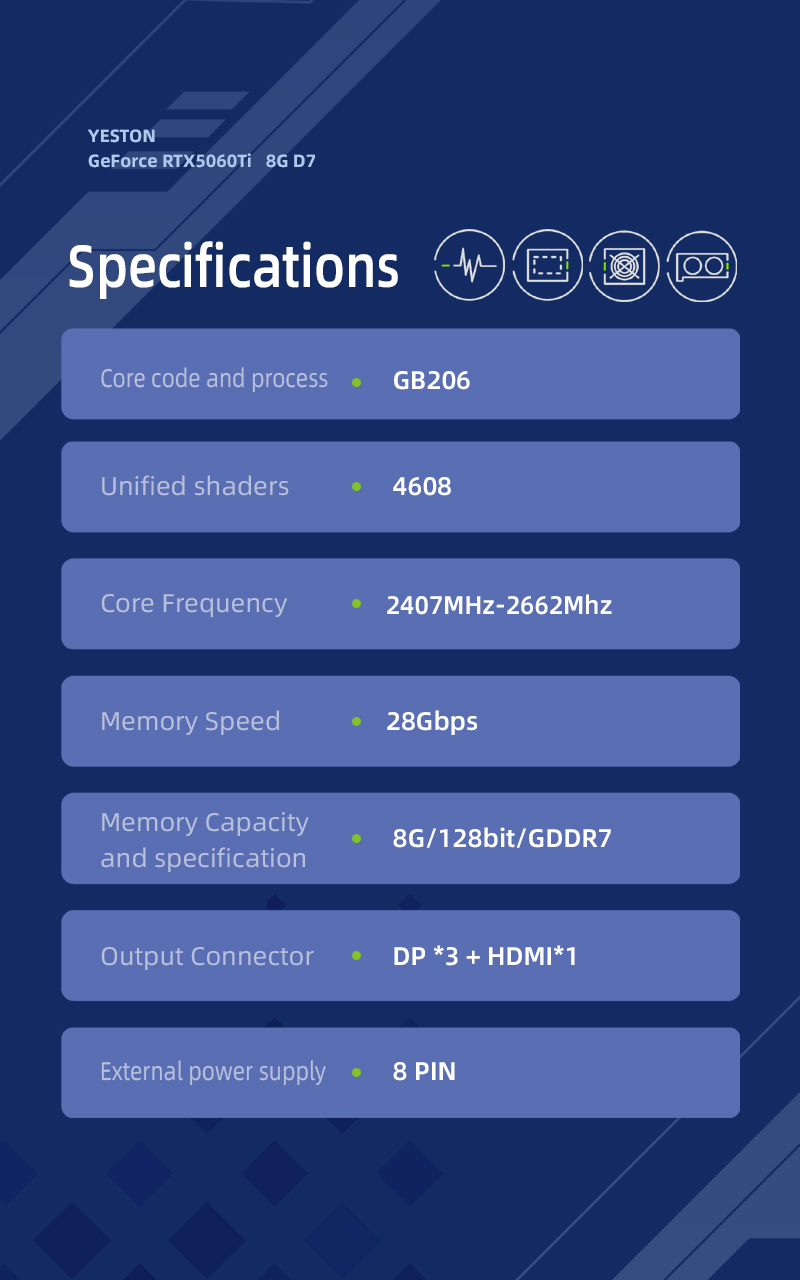

YESTON RTX 5060Ti 8G D7 Game Ace OC

Core code: GB206

Unified shaders: 4608

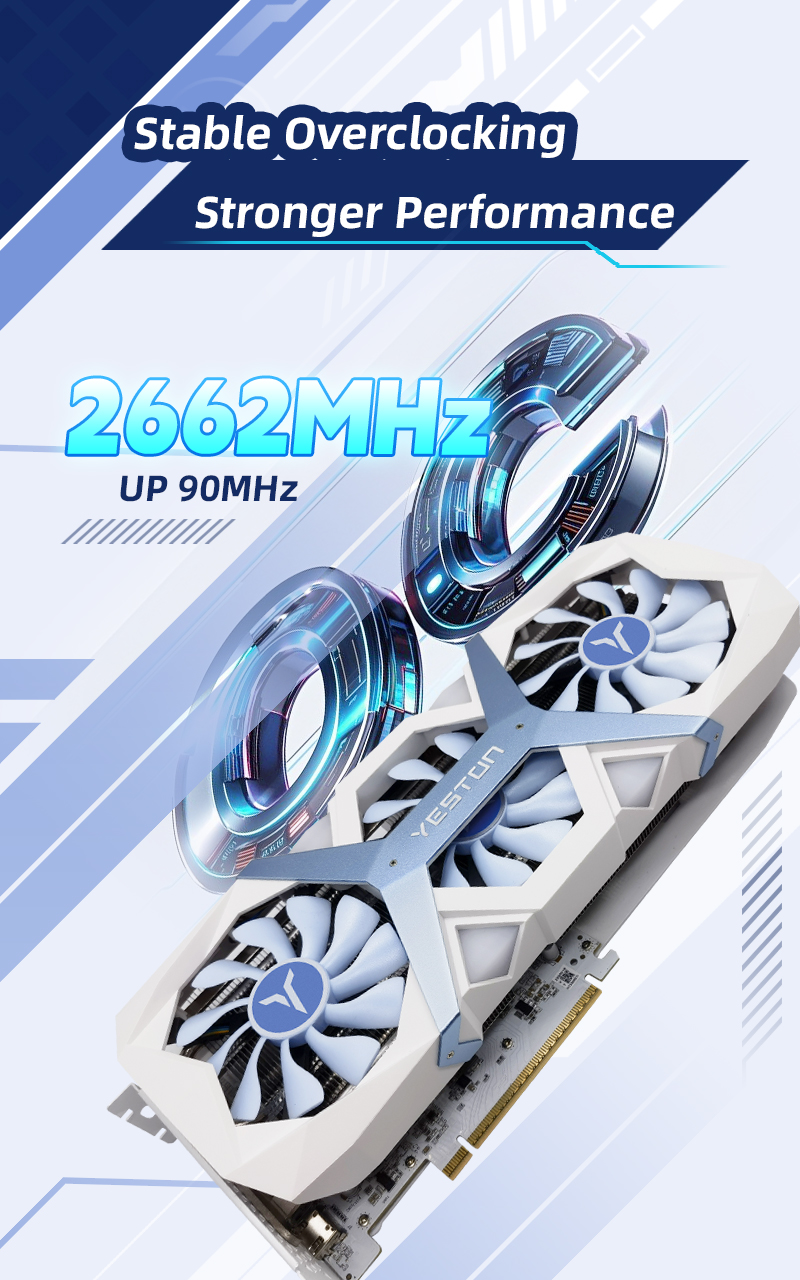

Core frequency: 2407MHz-2662MHz

Memory frequency: 1750MHz

Memory rate: 28Gbps

Video memory capacity and specifications: 8G/128bit/GDDR7

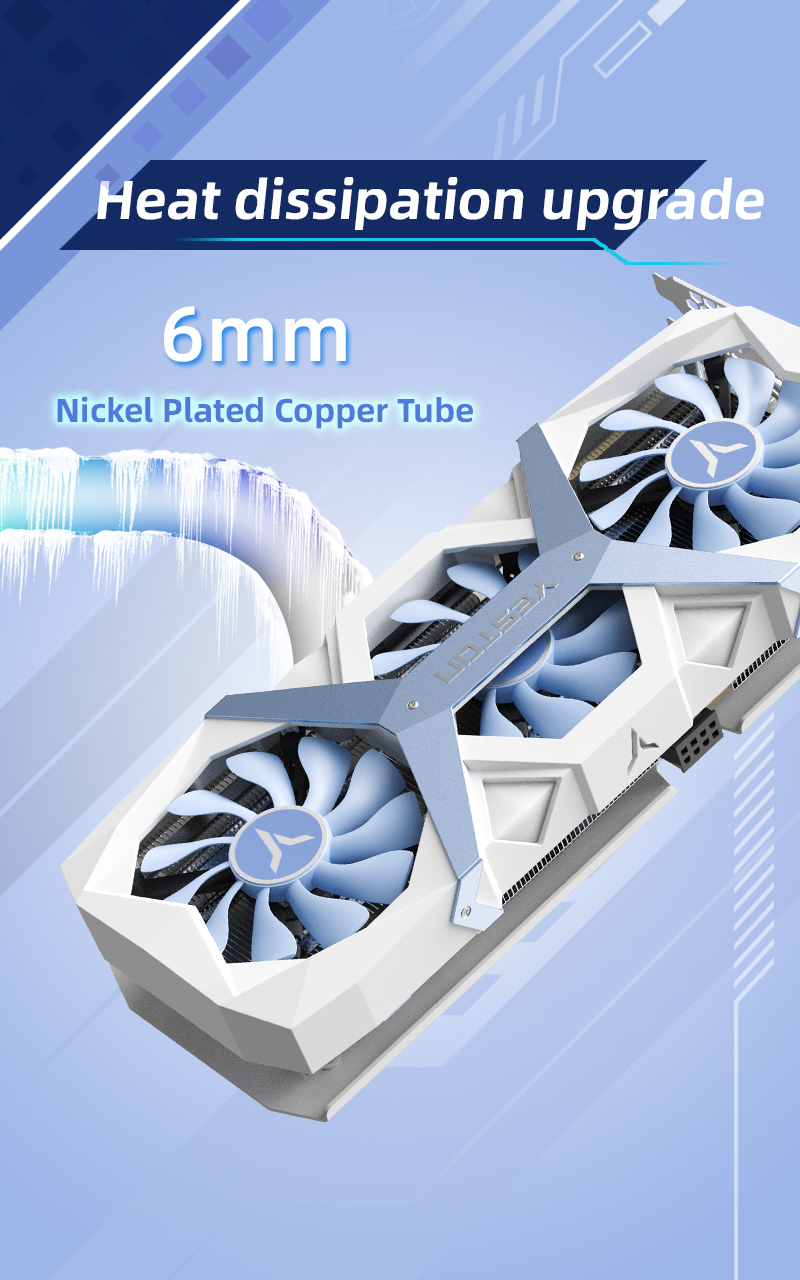

Radiator: 4*6mm composite heat pipe, 8.7cm*3 single ball fan, nickel-plated copper base

Bus interface: PCI-Express 5.0 x8

Output interface: DP(2.1b) *3 + HDMI(2.1b)

Power supply design: 5+2 phases

External power supply: 8PIN * 1 (recommended power supply above 600W)

Graphics card size: length, width and height 300*132*54mm (excluding bracket ears)

311*147*54mm (including baffle)

Weight: 906g

Packaging size/weight: 375*205*80mm/1190g
